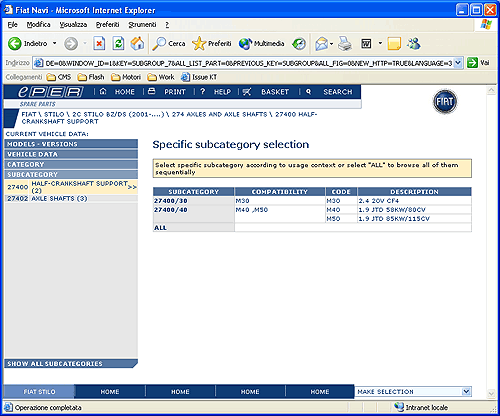

This page is displayed when there are several valid variants
for the selected subcategory (e.g.: 27402: AXEL SHAFTS) and
the current vehicle (e.g.: 27402/00 e 27402/01).
For every variant the compatibility/modifications and the
related descriptions are indicated so that the user can choose
correctly based on the vehicle characteristics
To proceed:
•
• Select a specific variant (e.g.: 27402/00, compatible
with M1). In this way you go directly to the first
table of this specific variant of the subcategory.
Then see section
5.3.8
Or
•
•
Click on “ALL” (the last link on the central menu).
Use this function when you want to show all of
the tables of all the active variants of the subcategory.
Then see section 5.3.8
Note: Based on the given vehicle characteristics
(e.g.: Engine Stamp, Version, Production date, etc.) the system
may automatically reject incompatible subcategory variants.
For example, if engine version M1 has been chosen and variant
27402/02 is compatible only with M5 and M6, this variant will
be automatically rejected and therefore not displayed to the
user as a choice.
