INSTALLATION

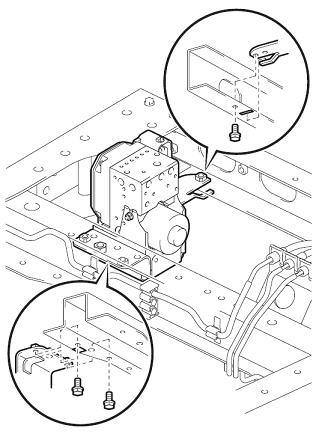

1. INSTALL BRAKE ACTUATOR WITH BRACKET
- Install the brake actuator with bracket to the body with the 3
bolts.
Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)
![](../BRAKE_ACTUATOR/images/note.png)
Do not damage the brake lines or wire harness.
![](../BRAKE_ACTUATOR/images/Installation_1.jpg)

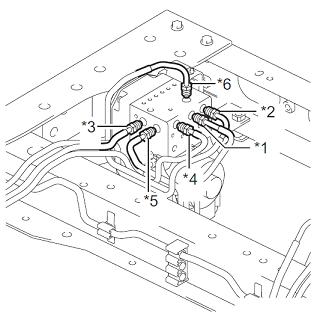

- Temporarily tighten each brake line to the correct positions of
the brake actuator with bracket as shown in the illustration.
![](../images/STD/Information.png)
- *1: To front wheel cylinder RH
- *2: To front wheel cylinder LH
- *3:
To rear wheel cylinder RH
- *4: To rear wheel cylinder LH
- *5: From master
cylinder (Rear side)
- *6: From master cylinder (Front side)
![](../BRAKE_ACTUATOR/images/Installation_2.jpg)

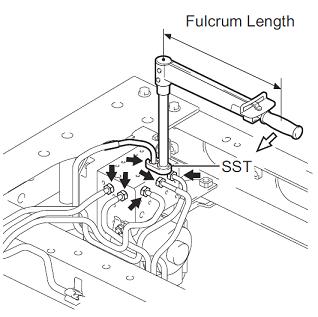

- Using SST, fully tighten the 6 brake lines.
SST 09023-00101
Torque: without SST; 15 N*m (153 kgf*cm, 11 ft.*lbf)
with SST; 14 N*m
(143 kgf*cm, 10 ft.*lbf)
![](../BRAKE_ACTUATOR/images/note.png)
- Use a torque wrench with a fulcrum length of 250 mm (9.84 in.).
- This
torque value is effective when SST is parallel to a torque wrench.
![](../BRAKE_ACTUATOR/images/Installation_3.jpg)
-

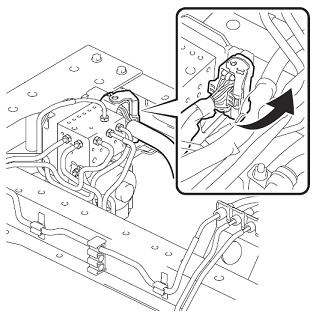

Connect the brake actuator connector.
![](../BRAKE_ACTUATOR/images/note.png)
Make sure that the connector is locked securely.
![](../BRAKE_ACTUATOR/images/Installation_4.jpg)
2. WARNING LIGHT INITIAL CHECK
![](../images/STD/Information.png)
See Pub. No. S1-YXZE05A, BRAKE FLUID.
3.BLEED BLAKE LINE
![](../images/STD/Information.png)
See Pub. No. S1-YXZE05A, BRAKE FLUID.
4.INSPECT FOR BRAKE FLUID LEAK
![](../images/STD/Information.png)
See Pub. No. S1-YXZE05A, BRAKE FLUID.
5.INSPECT FLUID LEVEL IN RESERVOIR
![](../images/STD/Information.png)
See Pub. No. S1-YXZE05A, BRAKE FLUID.
6.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7.CHECK BRAKE ACTUATOR
![](../BRAKE_ACTUATOR/images/Information.png)
(See BRAKE ACTUATOR REMOVAL)
