REMOVAL
1.DRAIN BRAKE FLUID
2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
3.REMOVE BRAKE ACTUATOR WITH BRACKET

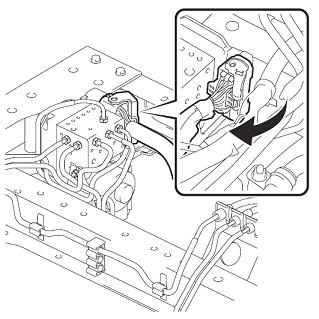

- Pull the lock lever.
- Disconnect the brake
actuator connector.
![](../BRAKE_ACTUATOR/images/note.png)
Be careful not to allow brake fluid to enter the removed connector.
![](../BRAKE_ACTUATOR/images/Removal_1.jpg)

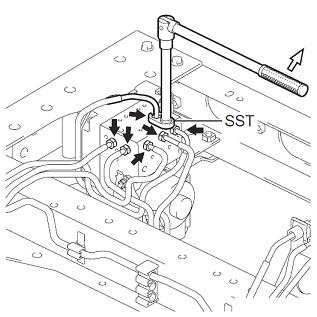

- Using SST, disconnect the 6 brake lines.
SST 09023-00101
![](../BRAKE_ACTUATOR/images/Removal_2.jpg)
-

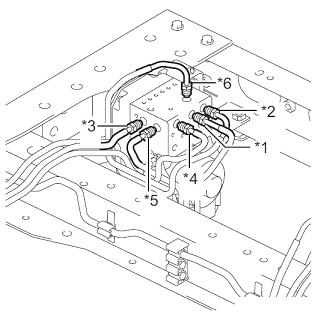

Use tags or make a memo to identify the places to reconnect.
- *1: To front wheel cylinder RH
- *2: To front wheel cylinder LH
-
*3: To rear wheel cylinder RH
- *4: To rear wheel cylinder LH
- *5: From
master cylinder (Rear side)
- *6: From master cylinder (Front side)
![](../BRAKE_ACTUATOR/images/Removal_3.jpg)

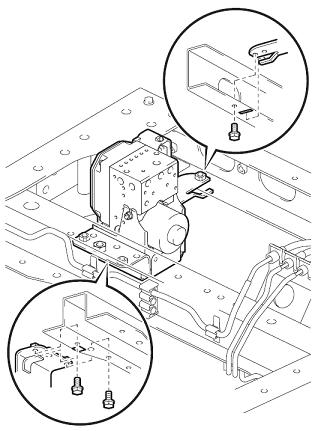

- Remove the 3 bolts and the brake
actuator with bracket.
![](../BRAKE_ACTUATOR/images/note.png)
Do not damage the brake lines or wire harness.
![](../BRAKE_ACTUATOR/images/Removal_4.jpg)
