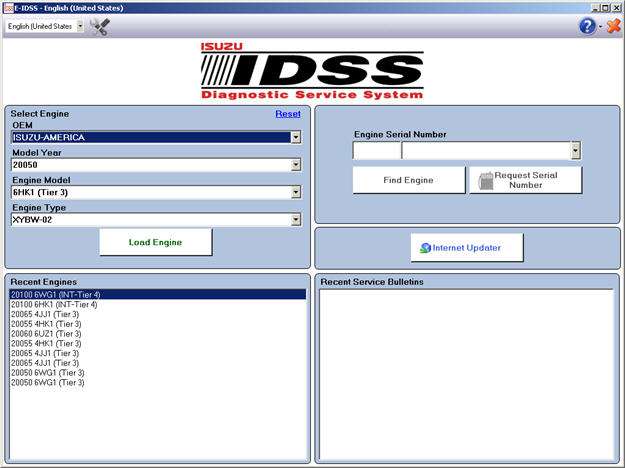

The IDSS main screen will be displayed at the start of every Isuzu Diagnostic Service System (IDSS) session. The main screen consists of the following:
Select OEM, Model Year, Engine Model and Engine Type drop down menus
Enter Engine Serial Number window
Internet Updater button
Recent Engines Loaded window
Recent Service Bulletins window
From the main screen, the user can perform the following:

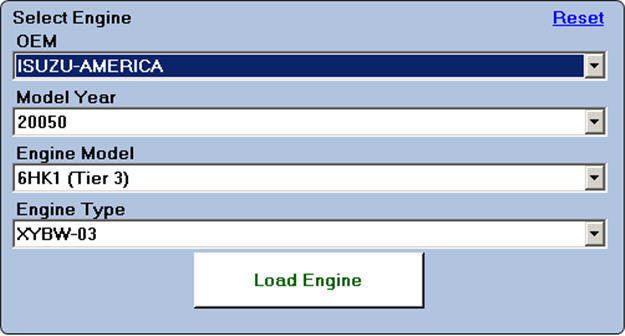

Manually select the engine model, etc . through a series of drop-down menu boxes click Load Engine.

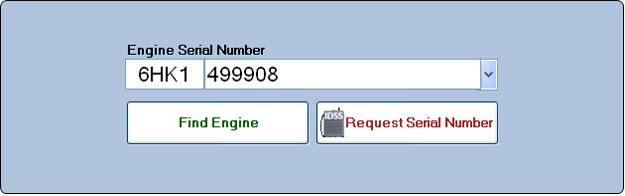

Manually enter the Engine Serial Number or click Find Engine button.
Automatically read the Engine Serial Number by clicking the Request Serial Number button.
Click one of the 30 most Recent Service Bulletins listed.
Click one of the listed Recent Engines Loaded selections.

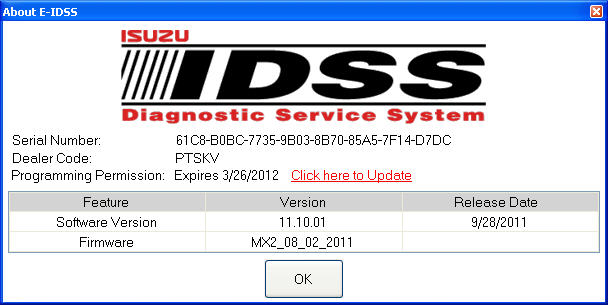

Clicking the
Help icon, then selecting “About” from the drop-down menu will open a
window containing the current Software and Firmware versions, Release
Date, Dealer Code and Registration Code.
To load information for a specific vehicle, perform one of the following:
Manually select the engine information through a series of drop-down menu boxes and click Load Engine.
Manually enter the Engine Serial Number and click Find Engine.
Automatically read the Engine Serial Number by clicking the Request Serial Number.
NOTE: In order to acquire information from the ECM, the device must be connected to an ECM for the Request Serial Number to function.

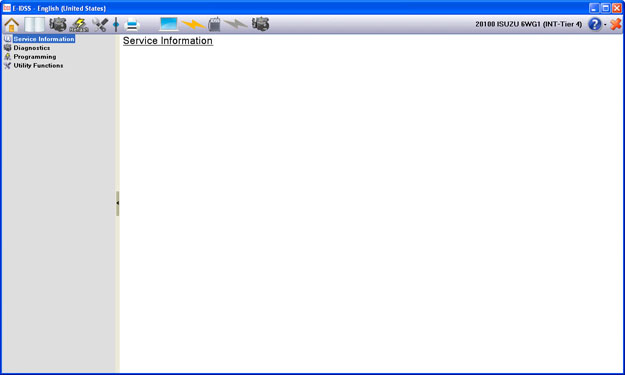

Once the Load Engine, Find Engine or Request Serial Number button has been selected, a new window will open with the Table of Contents on the left and an active toolbar on the top.

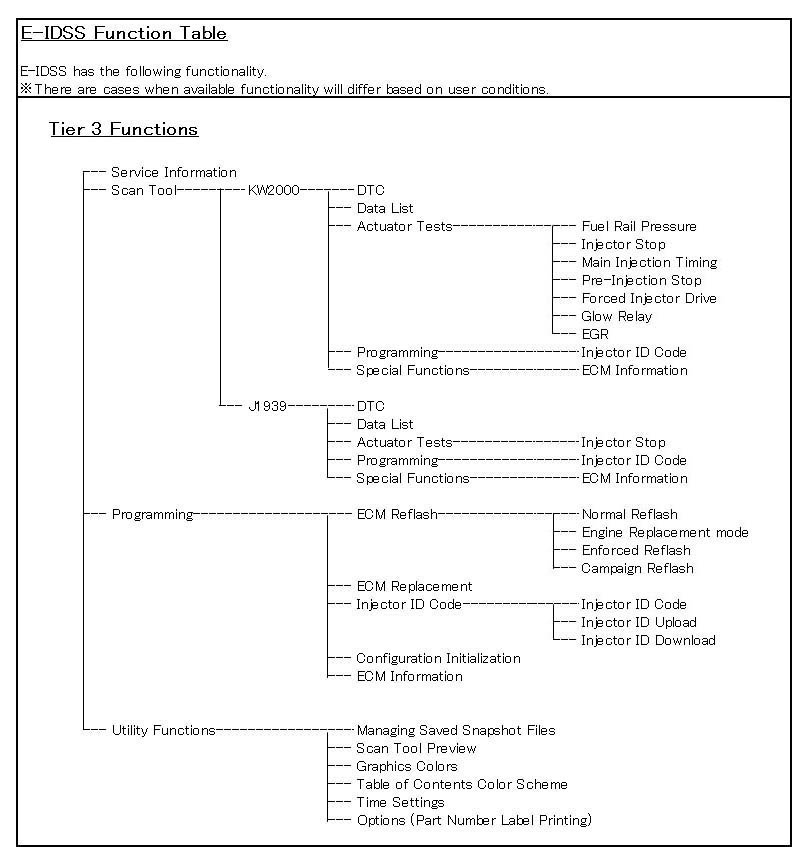

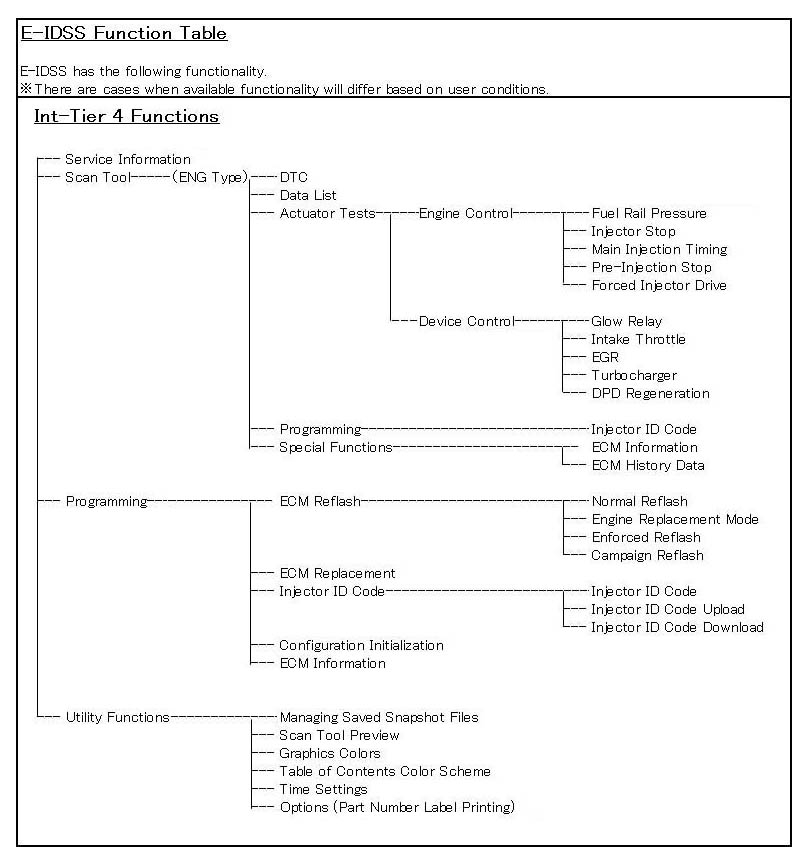

You can access the following service information which supports the selected engine type. You can also use each function listed below:
• Service Information
• Diagnostics
• Programming
• Utility Functions
Caution: When you access all the service information and each function, make sure you access the correct engine information (engine type and serial number). If you access with the incorrect engine information, it will not function properly. In addition, when the engine information (engine type and serial number) do not yield the search results, you can access that from "Select Engine," on the left side of the screen.
.
