Expand AllThe oil temperature sensor is installed on the transmission case, the oil temperature in the torque converter is detected, and a signal corresponding to the oil temperature is given as input to the transmission control computer ASSY. When the oil temperature of the torque converter rises to 145°C (293°F) or higher, the AT OIL TEMP lamp in the meter lights, and when it drops to -40°C (-40°F) or lower, the AT OIL TEMP lamp flashes.
| DTC No. |
|
Inspection part |
| P2740/17 |
|
|
Detail
- Remove the temperature sensor.
- Immerse the sender part of the temperature sensor into a vessel filled with original Toyota Auto Fluid Type T-IV.
- Heat the fluid and check the resistance between the terminals.
Standard:
Oil temperature [°C (°F)] Resistance value [kΩ] 115 (239) 657.1-726.3 120 (248) 584.8-646.4 145 (293) 340.8-375.3 155 (311) 277.9-307.1
Take care not to heat the oil excessively, as the oil may catch fire.
Replace the temperature sensor.

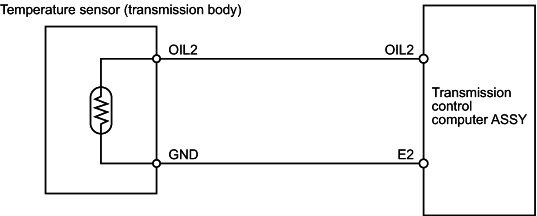

Proceed to [2]INSPECT WIRE HARNESS AND CONNECTOR (TEMPERATURE SENSOR - TRANSMISSION CONTROL COMPUTER ASSY)
- Install the temperature sensor.
- Connect the connector of the temperature sensor.
- Disconnect connectors A and B of the transmission control computer ASSY.
- Check the resistance between the terminals. (Refer to page for the terminal layout.)
Standard:
Terminal No.
(terminal symbol)Oil temperature [°C (°F)] Resistance value [kΩ] B16 (OIL2) ↔ A28 (E2) 115 (239) 657.1-726.3 B16 (OIL2) ↔ A28 (E2) 120 (248) 584.8-646.4 B16 (OIL2) ↔ A28 (E2) 145 (293) 340.8-375.3 B16 (OIL2) ↔ A28 (E2) 155 (311) 277.9-307.1
Repair or replace wire harness and connector.
Inspect and replace the transmission control computer ASSY.
- Confirm the DTC P2740/17 is inactive
- Start the engine and let it idling condition.
- Verify the DTC P2740/17 is inactive.
- DTC Clear
- Clear the DTC with Hino DX
- Confirm the same DTC is not reoccurred
- P2740/17 is reoccurF Return to first process
- Other DTC appearF Refer to concerned Trouble shooting
Complete
