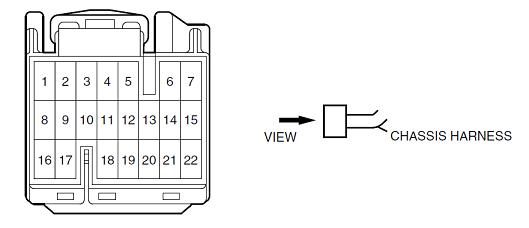

No. Signal
No. Signal
1 Rear reducing solenoid valve 12 Neutral switch 2 ES solenoid valve SM1 (Front) - 13 -
3 ES solenoid valve SM1 (Front) + 14 Ground 4 4 ES solenoid valve SM2 (Rear) - 15 Ground 3 5 ES solenoid valve SM2 (Front) + 16 Front retaining solenoid valve 6 Solenoid relay test 17 - 7 Rear retaining solenoid valve 18 - 8 Front reducing solenoid valve 19 - 9 - 20 - 10 - 21 - 11 - 22 -

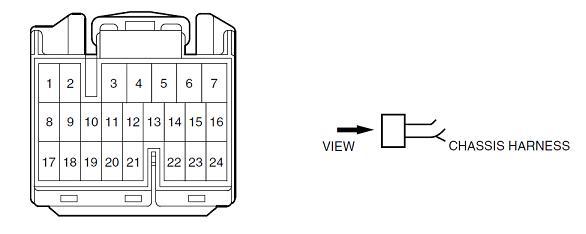

No. Signal
No. Signal
1 Relay power supply 17 -
2 Ground 1 18 Motor relay test 3 Ground 2 19 -
4 Clutch pedal stroke sensor power supply 20 Rear retaining solenoid valve 5 - 21 -
6 - 22 - 7 - 23 - 8 Front retaining solenoid valve 24 Solenoid relay 9 Front reducing solenoid valve
25 Front right wheel sensor - 10 - 26 Front right wheel sensor + 11 -
27 Front left wheel sensor + 12 Motor relay 28 Front left wheel sensor - 13 DST-1
29 - 14 - 30 Rear reducing solenoid valve
15 Clutch pedal stroke sensor signal
31 - 16 Clutch pedal stroke sensor ground

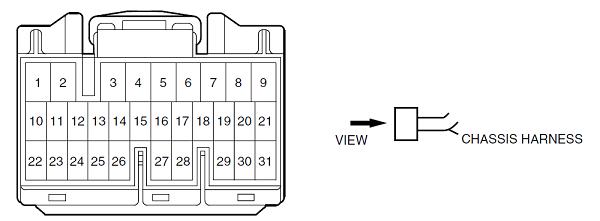

No. Signal
No. Signal
1 Stop light switch 13 -
2 ES start indicator light 14 -
3 ECU power supply (Battery) 15 Rear right wheel sensor - 4 -
16 Rear right wheel sensor + 5 Buzzer output 17 -
6 ABS warning light 18 Test mode startup 7 ECU power supply (Ignition) 19 Diagnosis startup 8 -
20 -
9 - 21 Parking brake switch 10 Exhaust brake relay
22 Rear left wheel sensor + 11 Parking brake switch 2 23 Rear left wheel sensor - 12 -
24 -

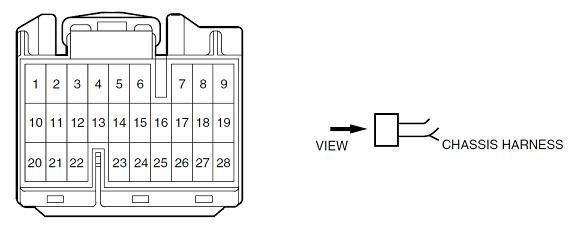

No. Signal
No. Signal
1 -
15 Brake fluid pressure sensor shield ground 2 Courtesy switch 16 G sensor power supply 3 Main switch (OFF) 17 -
4 Main switch (ON) 18 Exhaust brake relay monitor 5 Release timing switch (FAST) 19 -
6 Release timing switch (SLOW) 20 - 7 Engine revolution signal input 21 - 8 Vehicle speed sensor 22 -
9 - 23 -
10 - 24 Brake fluid pressure sensor power supply 11 - 25 Brake fluid pressure sensor signal 12 - 26 G sensor shield ground 13 -
27 G sensor ground 14 Brake fluid pressure sensor shield ground
28 G sensor input
