OPERATION CHECK.

1.NORMAL OPERATION CHECK.

Turn starter switch "ON" position.

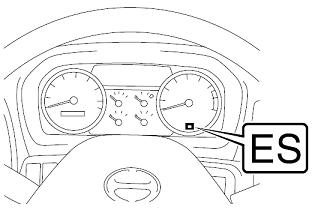

Make sure that ES start indicator in the combination meter will go on.
Then, when only ES start light flashes on/off, it means that 0-point adjustment of clutch and initial setting of release position are not made. Accordingly, make them.

At the same time, when ES start indicator light flashes on and off and the buzzer beeps continuously, it means that the switch or the sensor is not good. Checking those defective parts through diagnosis function, repair them.

2.OPERATION CHECK.

This check should be performed on "Brake Tester" or at place where protective device against the vehicle taking off is installed since taking off operation is needed.

The followings should be fulfilled.
- Starter switch: "ON"
- ES start main switch: "ON"
- Parking brake: "RELEASE"
- Vehicle speed: 0 km/h {0 mile/h}.

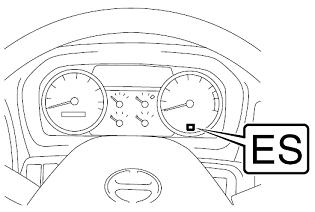

After stepping on the brake pedal for approx. 1 second, check that the buzzer beeps once, ES start indicator light goes on and ES start will operate.
Check that braking force is retained.
By normal operation for taking off (By shifting gear for clutch connection), check that ES start will be released.
