ADJUSTMENT FOR RELEASE TIMING


When any discrepancy (Brake dragging or vehicle moving back is produced on release timing of ES start, the release timing can be adjusted at option of driver's taste.

1.HOW TO SET

  1. Turn starter switch "ON" and also, put ES start main switch "ON".



  2. Push the release timing switch to "FAST" or "SLOW" side for 0.5 sec.
  3. When you want to adjust it to "FAST" side, push the switch to "FAST" side. And when adjusting it to "SLOW" side, push it to "SLOW" side.
    Accordingly, the release timing will be adjusted by a direction of the switch to be pushed and its adjusting position will be indicated by buzzer.
    When you want to keep adjusting it, release the switch once and push it again.

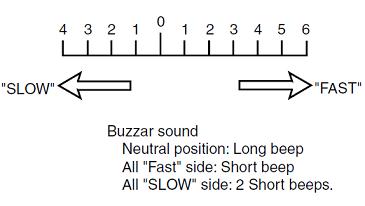

  4. Adjustable range is up to 6 to "FAST" and up to 4 to "SLOW" side and adjusting position will be indicated by buzzer sound.


However, release timing adjustment can not be made in the following cases:

  1. When any malfunction is found through diagnosis function.
  2. When the vehicle running at speed of more than 5 km/h {2.7 mile/h}.
  3. When ES start main switch is pushed to "RELEASE" side.
  4. When diagnosis monitor connected.
