DISCONNECTION OF SOLENOID VALVE SYSTEM FOR INJECTOR 1
(DTC CODE P0201 / DIAGNOSIS MONITOR CODE 61)

1. Set the starter key to the "LOCK" position and connect the signal check harness.

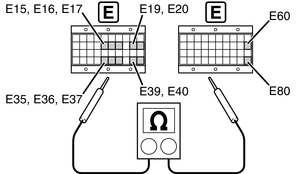

2. Disconnect the signal check harness connectors from the ECU and measure resistance between the terminals as listed below.




   Malfunction code		Malfunction (injector)	Terminal subject to resistance measurement
   P0201(61)		#1	E15 ↔ E35
   P0202(62)		#2	E16 ↔ E36
   P0203(63)		#3	E17 ↔ E37
   P0204(64)		#4	E19 ↔ E39
   P0205(65)		#5	E60 ↔ E80
   P0206(66)		#6	E20 ↔ E40



   ECU terminal No.		Description of terminal
   E15		IJ1+
   E16		IJ2+
   E17		IJ3+
   E19		INJ4
   E20		INJ6
   E35		INJ1
   E36		INJ2
   E37		INJ3
   E39		IJ4+
   E40		IJ6+
   E60		INJ5
   E80		IJ5+

   Standard value: 2 Ω or less

NO Go to [3] Measuring resistance between injector terminals.	YES Proceed to [2] Checking of diagnosis code

1. Connect the signal check harness connectors to the ECU and start the engine.
2. Use the HINO-DX to delete past malfunctions and then check a present malfunction.
3. Replace the engine ECU if the same code is output again. If a normal code is output, there may have been some short-lived abnormalities.




1. Disconnect the injector harness integrated connector from the cylinder head.
2. Measure resistance between the terminals of the injector cluster connector (a male connector to the cylinder head) as listed below.




   Diagnosis code		Terminal subject to resistance measurement
   DTC code	Diagnosis monitor code
   P0201	61	11 ↔ 12
   P0202	62	1 ↔ 2
   P0203	63	5 ↔ 6
   P0204	64	3 ↔ 4
   P0205	65	7 ↔ 8
   P0206	66	9 ↔ 10

   Standard value: 2 Ω or less

NO Go to [4] Measuring resistance between injector terminals.	YES Disconnection of vehicle harness (inspect a harness between the ECU and the injector harness integrated connector)

1. Remove the head cover and disconnect an injector connector (from an injector) of a cylinder detected/identified through an indicated diagnosis code.
2. Measure resistance between the 1st and 2nd terminals of the injector connector (component side) .




   Standard value: 0.210-0.295 Ω (20-70ºC {68-158ºF})

NO Go to [5] Measuring resistance between injector terminals.	YES Irregular contact of connector or harness inside the head cover

1. Remove injector terminal caps for a cylinder identified/indicated by a diagnosis code. Measure resistance between two terminals.




   Standard value: 0.210-0.295 Ω (20-70ºC {68-158ºF})

NO Disconnected coil in the injector (Replace the injector assembly.)	YES Disconnection of injector harness (replace the injector harness)

1. Confirm the DTC P0201 is inactive

   • Start the engine and let it idling condition.
   • Verify the DTC P0201 is inactive.



2. DTC Clear

   • Clear the DTC with Hino DX
   • Confirm the same DTC is not reoccurred



P0201 is reoccur: Return to first process Other DTC appear: Refer to concerned Trouble shooting

Complete
