5.1. Common characteristics of the navigation pages
All ePER pages contain common visual
elements which allow quick access to the various program functions
and which allow the identification of the current navigation
context, which is to say; the choices made up until that moment
(e.g.: Make/Model/Catalogue/Group)

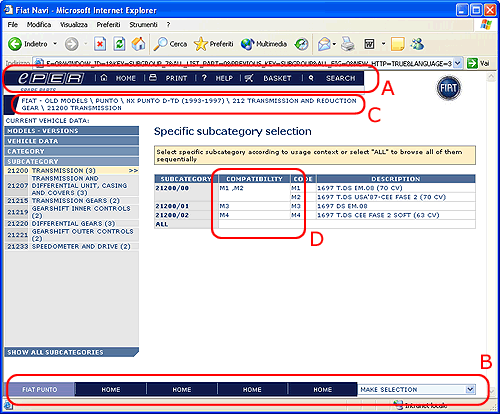

A – The menu bar, located at the top of the
display, contains buttons which allow you to reach the main
sections or functions of the system:
Return to the home page of
ePER and, therefore,
to the model selection in relation to the current
Make/Submake
Print the current display
Display the help window for
the current page
Display the shopping basket,
containing the products selected during navigation
Display the search menu and
activate the “search by product code” form
B - The menu bar, located at the bottom of
the display, contains these buttons:
HOME
Display the current work sessions,
up to a maximum of five.
SELEZIONE MARCA
Select make. Using
this control it is possible to change the current
make
C - Current Selection. This element contains
the route taken by the user to reach the current page. For
example if the table of the subgroup 21200 = “Transmission”
of a Punto D-DT is being displayed, the route will be of
the following type:
Fiat – Old Models \ PUNTO \ NX PUNTO D-TD (1993-1997)
\ 212 TRASMISSION AND REDUCTION GEAR \ 21200 TRASMISSION
The various element of the route are separated by the “\”
character and each element corresponds to a previous page
in which that element has been selected. Every element of
the route, if clicked, takes you back to the corresponding
selection page.
D – Current compatibility. This element
contains the list of (compatibility) characteristics set
by the user in the “Specific vehicle information” page.
It contains, for example, the version number, engine stamp,
chassis number, etc..
The parameters displayed in this area are used by ePER
to check compatibility of products compatible only with
particular vehicle versions, engine stamps or following
specific modifications to the vehicle.
